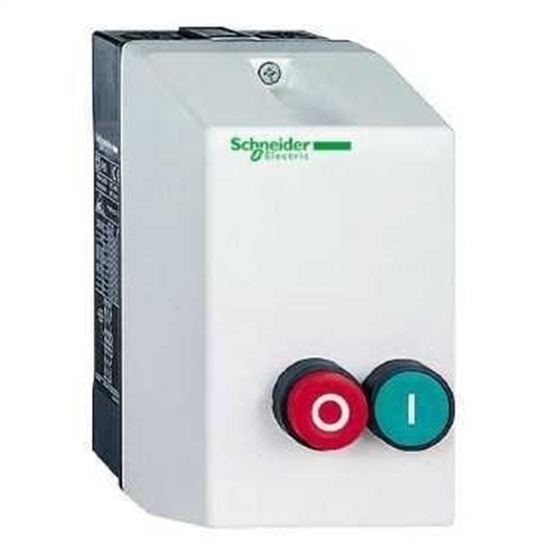

Picture of TeSys LE - enclosed DOL starter - 25 A - 110 V AC coil LE1D25F7

Sorry - this product is no longer available

Manufacturer: Schneider

TeSys LE - enclosed DOL starter - 25 A - 110 V AC coil LE1D25F7

Be the first to review this product

€93.90 excl tax

TeSys LE - enclosed DOL starter - 25 A - 110 V AC coil LE1D25F7

Qty:

range	TeSys
product name	TeSys LE
device short name	LE1D
product or component type	Enclosed DOL starter
device application	Standard
utilisation category	AC-3
device composition	Thermal overload relay ordered separately Contactor
control type	Push-button start green I Push-button stop/reset red O

Complementary
[Ie] rated operational current	25 A AC-3
motor power kW	11 kW at 380/400 V AC 50/60 Hz 11 kW at 415 V AC 50/60 Hz 11 kW at 440 V AC 50/60 Hz 15 kW at 500 V AC 50/60 Hz 15 kW at 660/690 V AC 50/60 Hz 5.5 kW at 220/230 V AC 50/60 Hz
[Ithe] conventional enclosed thermal current	25 A
[Uc] control circuit voltage	110 V AC 50/60 Hz
cable entry number	2 ISO20 top 2 ISO20 bottom 2 Pg 16 bottom 2 ISO25 top 2 Pg 21 bottom 2 ISO25 bottom
width	101 mm
height	201 mm
depth	153.5 mm
net weight	1.015 kg

Environment
material	Polycarbonate
IP degree of protection	IP65 conforming to IEC 60529
IK degree of protection	IK07 conforming to IEC 60529
standards	IEC 60947-4-1
ambient air temperature for operation	-5…40 °C
environmental characteristic	Standard environment

range	TeSys
product name	TeSys LE
device short name	LE1D
product or component type	Enclosed DOL starter
device application	Standard
utilisation category	AC-3
device composition	Thermal overload relay ordered separately Contactor
control type	Push-button start green I Push-button stop/reset red O

Complementary
[Ie] rated operational current	25 A AC-3
motor power kW	11 kW at 380/400 V AC 50/60 Hz 11 kW at 415 V AC 50/60 Hz 11 kW at 440 V AC 50/60 Hz 15 kW at 500 V AC 50/60 Hz 15 kW at 660/690 V AC 50/60 Hz 5.5 kW at 220/230 V AC 50/60 Hz
[Ithe] conventional enclosed thermal current	25 A
[Uc] control circuit voltage	110 V AC 50/60 Hz
cable entry number	2 ISO20 top 2 ISO20 bottom 2 Pg 16 bottom 2 ISO25 top 2 Pg 21 bottom 2 ISO25 bottom
width	101 mm
height	201 mm
depth	153.5 mm
net weight	1.015 kg

Environment
material	Polycarbonate
IP degree of protection	IP65 conforming to IEC 60529
IK degree of protection	IK07 conforming to IEC 60529
standards	IEC 60947-4-1
ambient air temperature for operation	-5…40 °C
environmental characteristic	Standard environment
