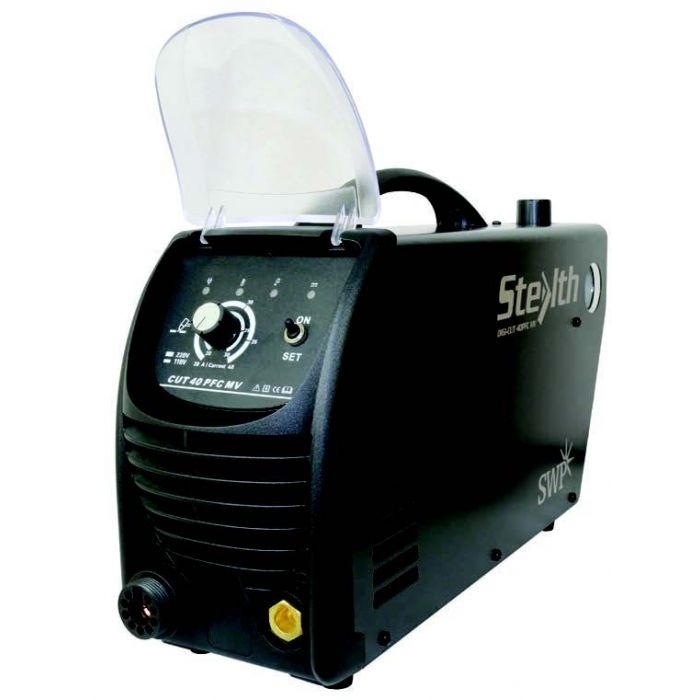

STEALTH DIGI-CUT 40PFC MV (CW PC7100H)

Specifications 110 Volts

• Input power voltage (V) – 110±10%
• Frequency (Hz) – 50/60
• Effective input current (A) – 20.4
• Maximum (KVA) – 3.8
• Adjustment range of current (A) – 20-30
• Maximum no-load voltage (V) – 320
• Rated duty cycle (40oc 10 min) – 35% @ 30A, 60% @ 22A, 100% @ 20A
• Severance cut for carbon steel (mm) - ≤20
• Production cut for carbon steel (mm) - ≤15
•                             Stainless steel - ≤15
•                             Aluminum - ≤12
•                             Copper - ≤8
• Protection class – lP23
• Insulation class – H
• Cooling – Air
• Overall dimensions (mm) – 640 x 240 x 445
• Weight (Kg) – 23
• Accessories included – 3m earth return lead

Specifications 230 Volts

• Input power voltage (V) – 230±10%
• Frequency (Hz) – 50/60
• Effective input current (A) – 16
• Maximum (KVA) – 5.2
• Adjustment range of current (A) – 20-40
• Maximum no-load voltage (V) – 320
• Rated duty cycle (40oc 10 min) – 50% @ 40A, 60% @ 36A, 100% @ 30A
• Severance cut for carbon steel (mm) - ≤25
• Production cut for carbon steel (mm) - ≤20
•                             Stainless steel - ≤20
•                             Aluminum - ≤16
•                             Copper - ≤12
• Protection class – lP23
• Insulation class – H
• Cooling – Air
• Overall dimensions (mm) – 640 x 240 x 445
• Weight (Kg) – 23
• Accessories included – 3m earth return lead
