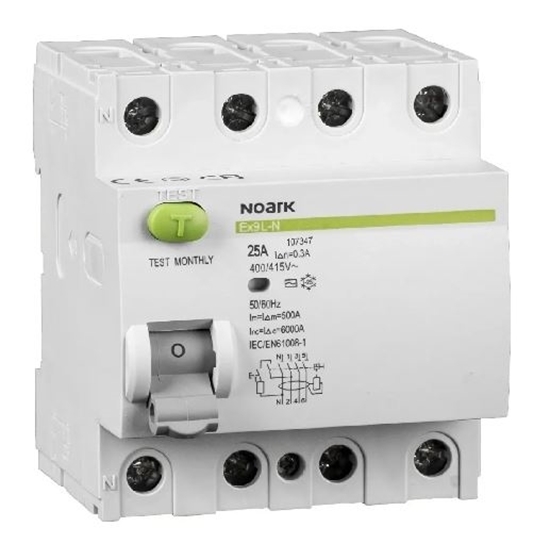

Residual Current Circuit Breaker Ex9L-N 4P 63A A 100mA

€0.00 incl tax

Ex9NL-N residual circuit breaker with overcurrent protection are suitable for domestic as well as industrial applications. They are based on combination of residual current device with electromagnetic principle and circuit breaker with thermal overload release and magnetic short circuit current release. It brings the advantage of voltage independent function of the residual current device. Adequate voltage is only necessary when testing the RCBO with the T test button.

Number of poles (total)	4
Nominal rated voltage [V]	400
Nominal rated current [A]	63
Rated fault current [A]	0.1
Mounting method	DIN rail
Leakage current type	A
Selective protection	No
Short-circuit breaking capacity (Icw) [kA]	6
Surge current capacity [kA]	3
Frequency	50 Hz
Additional equipment possible	No
Degree of protection (IP)	IP20
Construction size (in accordance with DIN 43880)	4
Width in number of modular spacings	4
Built-in depth [mm]	79
Short-time delayed tripping	No
Power loss [W]	24

Number of poles (total)	4
Nominal rated voltage [V]	400
Nominal rated current [A]	63
Rated fault current [A]	0.1
Mounting method	DIN rail
Leakage current type	A
Selective protection	No
Short-circuit breaking capacity (Icw) [kA]	6
Surge current capacity [kA]	3
Frequency	50 Hz
Additional equipment possible	No
Degree of protection (IP)	IP20
Construction size (in accordance with DIN 43880)	4
Width in number of modular spacings	4
Built-in depth [mm]	79
Short-time delayed tripping	No
Power loss [W]	24
