  • TeSys LE - enclosed DOL starter - 9 A - 110 V AC coil LE1D09F7
PrevTeSys LE - enclosure for DO...
NextSchneider Electric 4 kW Aut...

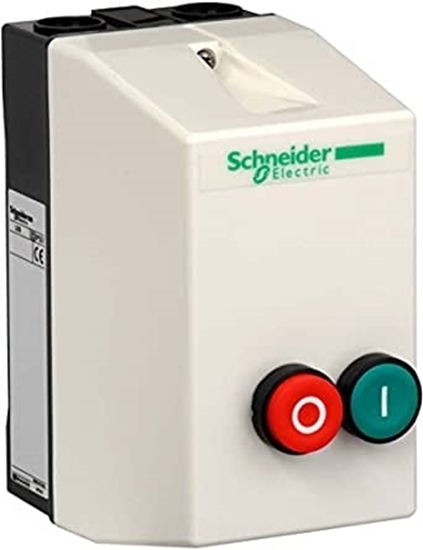

Picture of TeSys LE - enclosed DOL starter - 9 A - 110 V AC coil LE1D09F7
Manufacturer: Schneider

TeSys LE - enclosed DOL starter - 9 A - 110 V AC coil LE1D09F7

Be the first to review this product
€50.81 excl tax
TeSys LE - enclosed DOL starter - 9 A - 110 V AC coil LE1D09F7
  • Overview
  • Reviews
  • Contact Us
Main
range
TeSys

product name
TeSys LE

device short name
LE1D

product or component type
Enclosed DOL starter

device application
Standard

utilisation category
AC-3

device composition
Thermal overload relay ordered separately
Contactor

control type
Push-button start green I
Push-button stop/reset red O

Complementary
[Ie] rated operational current
9 A AC-3

motor power kW
4 kW at 380/400 V AC 50/60 Hz
4 kW at 415 V AC 50/60 Hz
4 kW at 440 V AC 50/60 Hz
2.2 kW at 220/230 V AC 50/60 Hz
5.5 kW at 500 V AC 50/60 Hz
5.5 kW at 660/690 V AC 50/60 Hz

[Ithe] conventional enclosed thermal current
9 A

[Uc] control circuit voltage
110 V AC 50/60 Hz

cable entry number
2 ISO20 top
2 ISO20 bottom
2 Pg 13 bottom
2 Pg 16 bottom

width
88 mm

height
166 mm

depth
128.5 mm

net weight
0.92 kg

Environment
material
Polycarbonate

IP degree of protection
IP65 conforming to IEC 60529

IK degree of protection
IK07 conforming to IEC 60529

standards
IEC 60947-4-1

ambient air temperature for operation
-5…40 °C

environmental characteristic
Standard environment

Offer Sustainability
Sustainable offer status
Green Premium product
