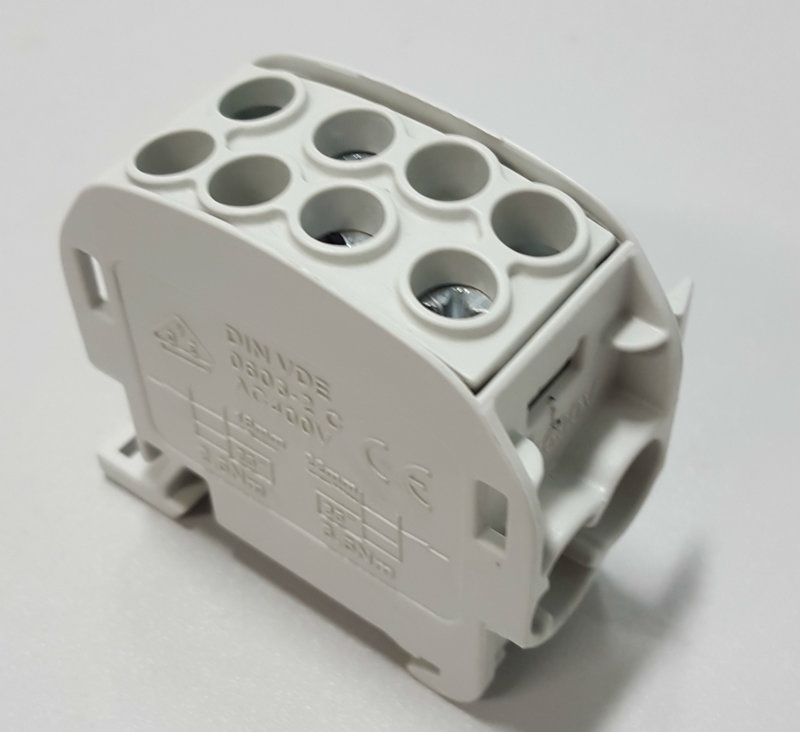

Main line/branch terminals
General features:
- Extremely compact, all sides finger-safe
- 1 pole (4 x connections per pole) DIN rail mounting
- Terminal body: brass (CuZn39Pb2) Housing: self-extinguishing, halogen free
- Rapid installation (stackable horizontally) clips together to add additional poles
SERIES |
HLAK series |
DESCRIPTION |
Rail mount terminals |
RATED CURRENT |
202A |
TERMINAL SIZE (MM²) - 2 x MAIN |
4 - 35 |
TERMINAL SIZE (MM²) - 2 x BRANCH |
2.5 - 25 |
DIMENSIONS (MM) |
(H) 52 x (W) 22.2 x (D) 49 mm |
